Description

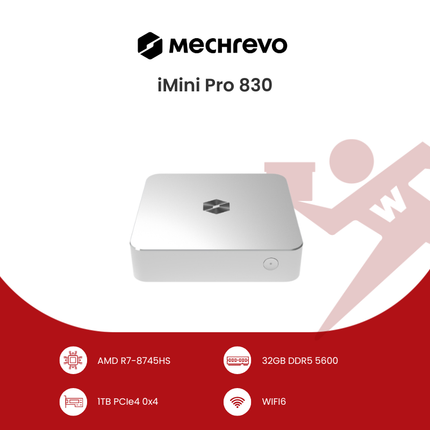

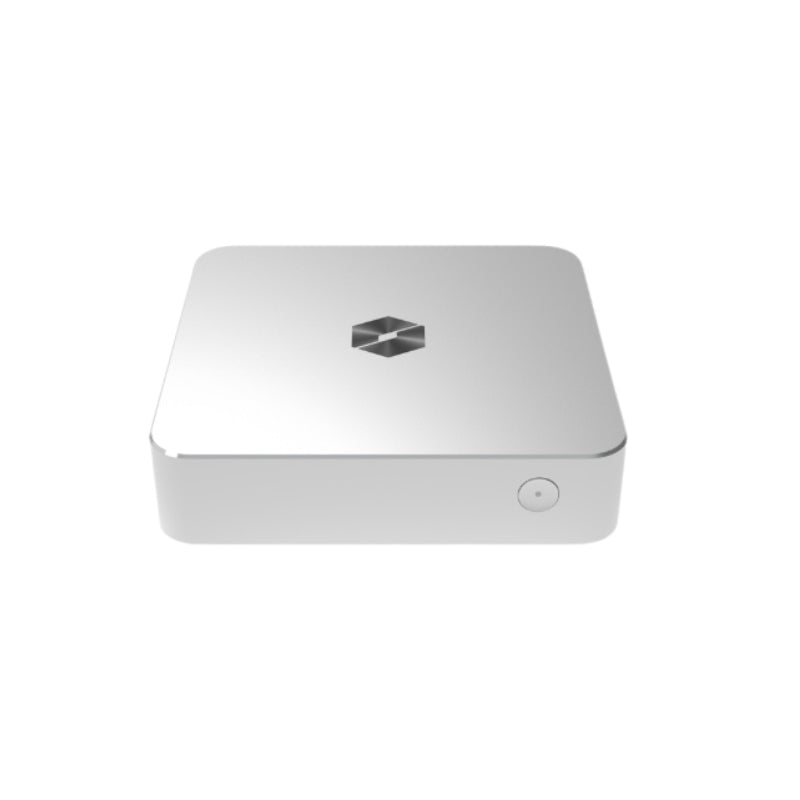

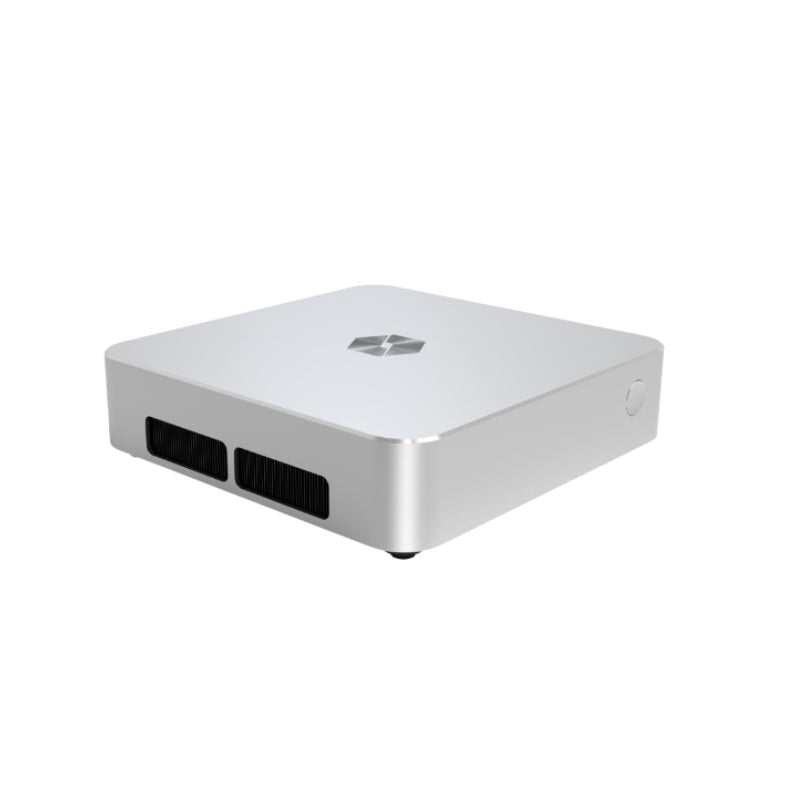

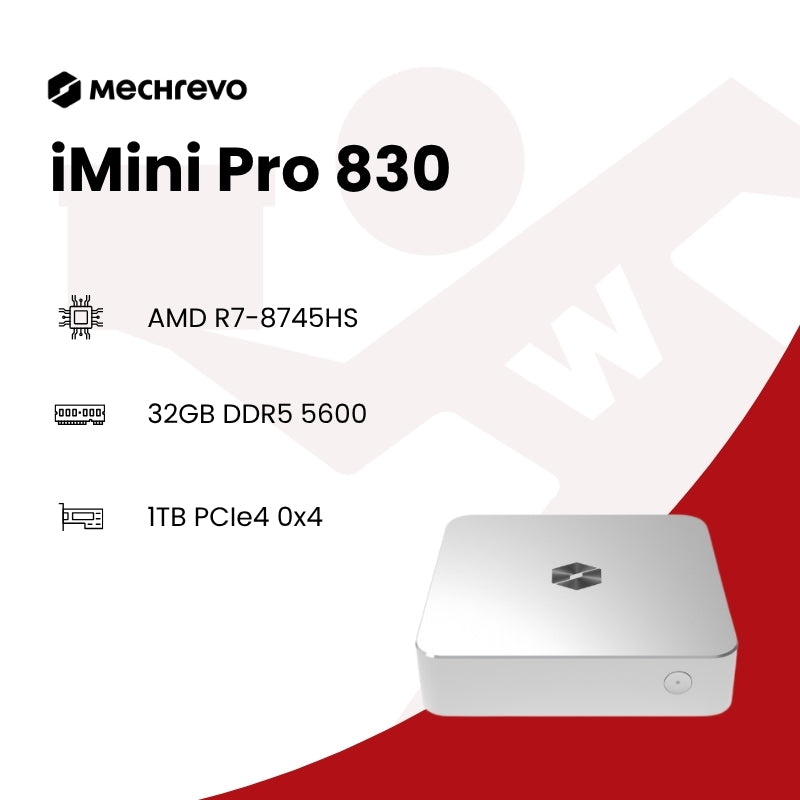

The Mechrevo iMini Pro 830 is a high-performance mini desktop designed to deliver massive computing power in a sleek, space-saving form factor. Crafted with a full metal aluminum alloy chassis featuring premium CNC diamond-cut edges, this mini PC fits perfectly in any modern office or home setup while maintaining industrial-grade durability.
Key Specifications
Product Style
Product Form: Mini PC
Color: Silver
Dimension: 154×152.2×37.8mm （with base 40.1mm)
Weight: 0.75Kg
Material: Metal Cover with plastic base

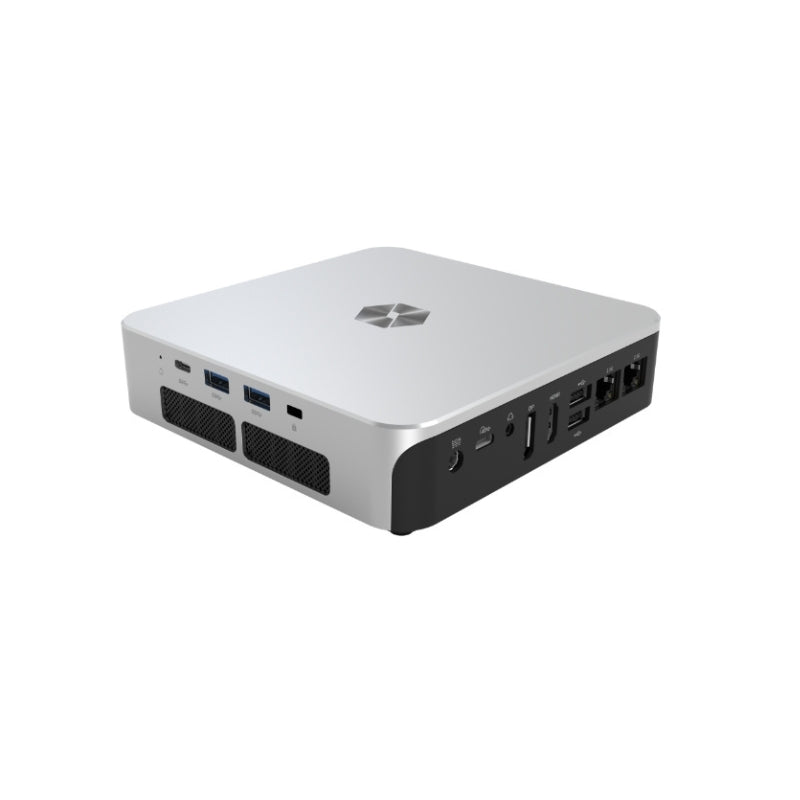

I/O Port
USB-A: USB3.2 Gen1*2 l USB2.0*1
Type_C: USB3.2 Gen2*1 (PD/DP/Data/Charger) l USB4.0*1
Thunderbolt: N/A
Video Ports: HDMI 2.1 *1 l DP * 1
Audio Jack: Ø3.5mm combo
RJ45: RJ45 * 2
Hardware
CPU
Type: AMD Ryzen 7 8745HS (65W TDP) Frequency 3.8Ghz-4.9GHz, 16MB L3 Cache, 8 Cores 16 Threads
GPU
Type: AMD Radeon 780M
Storage
RAM: 32GB DDR5 5600MHz x 1pc (CONFIF UP TO SO-DIMM DDR5x2 up to 64GB)*
SSD: 1TB (CONFIG UP TO 2 *M.2 2280 (PCIE 4.0))
HDD: N/A
Extended Storage: N/A
Security
TPM: FTPM
WIFI
WIFI Standard: WiFi6
WIFI Frequency: 2.4G/5G
Bluetooth
Bluetooth: support
Version: 5.2
Ethernet
Gigabit Lan: N/A
Software
OS
System: Windows 11 Pro
Language Supported: support multi lanaguage
Standard Accessories
Adaptor
Input: AC100~240V
Output: 120W
Warranty
3 Years - Parts & Labor
*RAM IS CONFIG FOR CTOs, MOQ APPLIES
**LPDDR5X/LPDDR5 - SOLDERED
