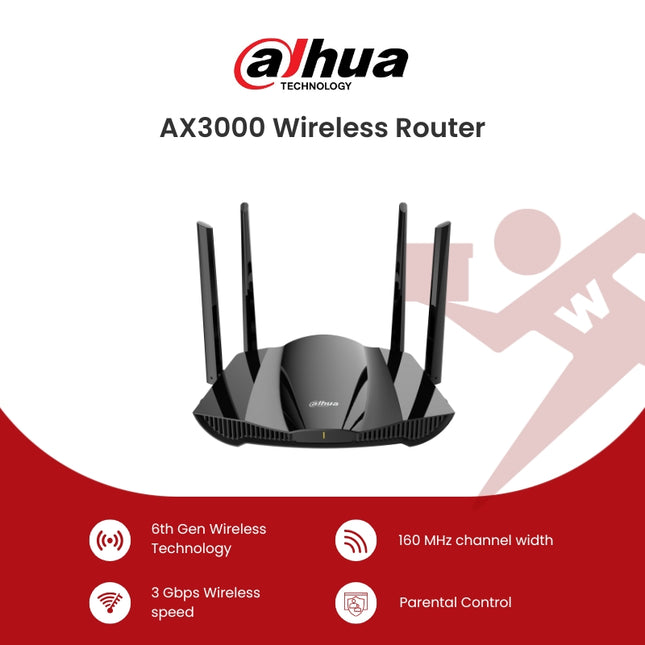

Pre-order: will take 2-3 days for process.    Technical Specifications: Hardware External Port 1×10/100/1000 Mbps (WAN)3×10/100/1000 Mbps (LAN) Reset Button 1 WPS Button 1 Power Consumption <18W Memory 256 MB Indicator Light PWR Wireless Standard 2.4 GHz: 802.11 b/g/n/ax5 GHz: 802.11 a/b/g/n/ac/ax Performance Operating Frequency 2.412GHz – 2.472 GHz5.170GHz – 5.330 GHz5.735GHz – 5.835 GHz Wireless Transmission Rate 2.4 GHz: 574 Mbps5 GHz: 2402 Mbps Channel Width 20/40/80/160 MHz Max. Output Power CE EIRP: ≤20 dBm@2400-2483.5 MHz ≤23 dBm@5150-5250 MHz ≤23 dBm@5250-5350 MHz ≤27 dBm@5470-5725 MHz ≤14 dBm@5725-5850 MHz FCC output power: ≤27 dBm@2400-2483.5 MHz ≤24 dBm@5150-5250 MHz ≤24 dBm@5250-5350 MHz ≤24 dBm@5470-5725 MHz ≤30 dBm@5725-5850 MHz Antenna Gain 2.4 GHz: 5 dBi (±0.5)5 GHz: 5 dBi (±0.5) Receiver Sensitivity 5 GHz11ac VHT80_MCS0: -89 dbm11ac VHT80_MCS9: -62 dbm11ax VHT160_MCS0: -88 dbm11ax VHT160_MCS11: -55 dbm11ax HE80_MCS0: -89 dbm11ax HE80_MCS11: -59 dbm11ax HE160_MCS0: -85 dbm11ax HE160_MCS11: -55 dbm2.4 GHz11n HT20_MCS0: -95 dbm11n HT20_MCS7: -75 dbm11n HT40_MCS0: -92 dbm11n HT40_MCS7: -72 dbm11ax HE20_MCS0: -95 dbm11ax HE20_MCS11: -65 dbm11ax HE40_MCS0: -92 dbm11ax HE40_MCS11: -62 dbm Channel 2.4 GHz; 1-135 GHz: 36/40/44/48/149/151/153/157/161/165 Connected Wireless Terminals Up to 128 Feature Operating Mode Router; repeater Encryption Mode WPA-PSK; WPA2-PSK; WPA-PSK/WPA2-PSK; WPA3-PSK; WPA2-PSK/WPA3-PSK Firmware Update Web updateWiLynk App update OFDMA Yes MU-MIMO 2x2 DHCP Yes NAT Mapping based on port QoS Yes DDNS Yes Parental Controls Yes Equipment Management Web/WiLynk App Software Firewall; end device management General Power Supply 12 VDC,1.5 A Operating Temperature 0 °C to 40 °C (32 °F to 104 °F) Storage Temperature –40 °C to +70 °C (–40 °F to 158 °F) Operating Humidity 10%–95% (RH), non-condensing Gross Weight 0.86 kg (1.90 lb) Net Weight 0.36 kg (0.79 lb) Packaging Dimensions 470 mm × 295 mm × 60 mm (18.50" × 11.61" × 2.36")(L × W × H) Product Dimensions 262.2 mm × 150.1 mm × 184.5 mm (10.32" × 5.91" × 7.26")(L × W × H) Statics Protection Air discharge: 8 kV; Contact discharge: 6 kV Lighting Protection Common mode: 2 kV; Differential mode: 0.5 kV Installation Desktop mount; wall mount

Read more less

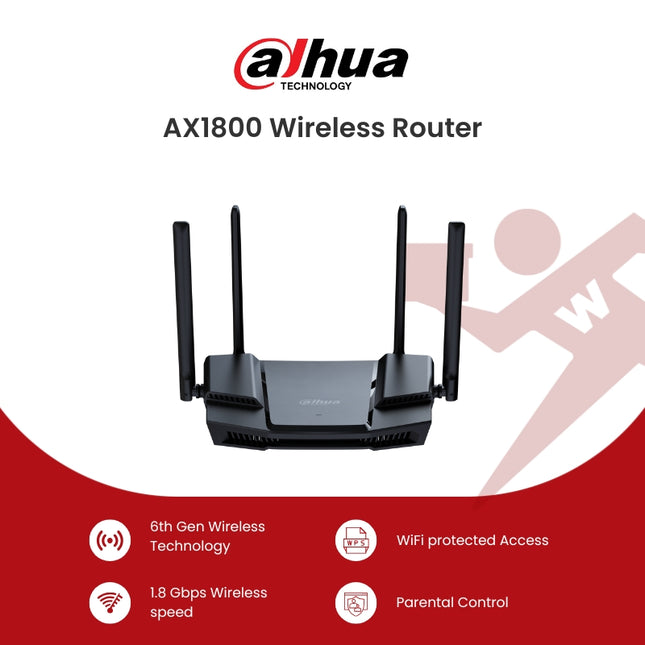

Pre-order: will take 2-3 days for process.  Specification Hardware WAN Port 1×10/100/1000 Mbps LAN Port 3×10/100/1000 Mbps Reset Button 1 WPS Button 1 Power Consumption <12 W Memory 128 MB Flash and 256 MB RAM Indicator Light PWR Wireless Standard 2.4 GHz: 802.11 b/g/n/ax 5 GHz: 802.11 a/n/a/ac/ax Performance Operating Frequency 2.412 GHz–2.484 GHz 5.150 GHz–5.850 GHz Wireless Transmission Rate 2.4 GHz: 574 Mbps 5 GHz: 1201 Mbps Channel Width 20/40/80 MHz Max. Output Power 20 dBm ± 2 dBm Antenna Gain 2.4 GHz: 5dBi (±0.5) 5 GHz: 5dBi (±0.5) Receiver Sensitivity 2.4 GHz 11n HT20_MCS0: -95 dbm 11n HT20_MCS7: -75 dbm 11n HT40_MCS0: -92 dbm 11n HT40_MCS7: -72 dbm 11ax HE20_MCS0: -95 dbm 11ax HE20_MCS11: -65 dbm 11ax HE40_MCS0: -92 dbm 11ax HE40_MCS11: -62 dbm 5 GHz 11ac VHT80_MCS0: -89 dbm 11ac VHT80_MCS9:-62 dbm 11ax HE80_MCS0: -89 dbm 11ax HE80_MCS11:-59 dbm Optimal Transmission Distance 63 m (206.69 ft) Channel 2.4 GHz: 1-13 5 GHz: 36/40/44/48,52/56/60/64,149/151/153/157/1 61/165 Connected Wireless Terminals 2.4 GHz: 32 5 GHz: 32 Function Encryption Mode WPA-PSK WPA-PSK/WPA2-PSKWPA2-PSKWPA2-PSK/WPA3- SAEWPA3-SAE Management and Log NTP; Syslog Firmware Update Web/WiLynk App update OFDMA Yes MU-MIMO 2x2 DHCP Yes NAT Mapping based on port VPN L2TP PPTP QoS Yes DDNS Yes Parental Controls Yes Equipment Management Yes General Power Supply 12 VDC,1 A Operating Temperature 0 °C to 40 °C (32 °F to 104 °F) Storage Temperature –20 °C to +70 °C (–4 °F to 158 °F) Operating Humidity 10%–90% (RH), non-condensing Gross Weight 0.73 kg (1.61 lb) Net Weight 0.43 kg (0.95 lb) Packaging Dimensions 309 mm × 298 mm × 61 mm (12.17" × 11.73" × 2.40") (L × W × H) Product Dimensions 252 mm × 155mm × 178 mm (9.92" × 6.10" × 7.01") (L× W × H) Statics Protection Air discharge: 8 kV Contact discharge: 6 kV Lighting Protection Common mode: 2 kV Differential mode: 0.5 kV Installation Desktop mount Packing List 1 × Device 1 × Power adapter 1 × Ethernet cable 1 × Quick Start Guide 1 × Legal and Regulatory Information WARRANTY: 1YEAR

Read more less

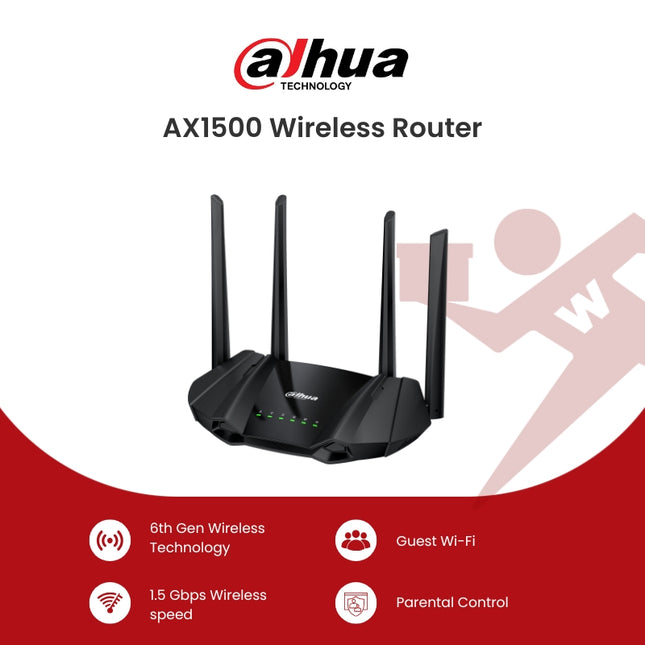

Pre-order: will take 2-3 days for process.  Technical Specification Hardware Physical Port 1 × 10/100/1000Mbps WAN 2 × 10/100/1000Mbps LAN Power Consumption: <10 W Memory: 128 MB Flash and 128 MB RAM Indicator Light 1 × WPS 1 × 5GHz, 1 x 2.4GHz 1 × LAN 1 × Internet 1 × PWR Button 1 × Reset/WPS button Wireless Standard 2.4 GHz: 802.11 b/g/n 5 GHz: 802.11 a/n/a/ac/ax Performance Operating Frequency 2.412 GHz–2.484 GHz 5.150 GHz–5.850 GHz Wireless Transmission Rate 2.4 GHz: 300 Mbps 5 GHz: 1201 Mbps Channel Width 20/40/80 MHz Max. Output Power 20 dBm ± 2 dBm Antenna Gain 2.4 GHz: 5dBi (±0.5) 5 GHz: 5dBi (±0.5) Receiver Sensitivity 2.4 GHz 11n HT20_MCS0: -95 dbm 11n HT20_MCS7: -75 dbm 11n HT40_MCS0: -92 dbm 11n HT40_MCS7: -72 dbm 5 GHz 11ac VHT80_MCS0: -89 dbm 11ac VHT80_MCS9: -62 dbm 11ax HE80_MCS0: -89 dbm 11ax HE80_MCS11: -59 dbm Channel 2.4 GHz: 1-13 5 GHz: 36/40/44/48,52/56/60/64,149/151/153/157 /161/165 Connected Wireless Terminals 2.4 GHz: 16 5 GHz: 32 Function Encryption Mode WPA-PSK WPA2-PSK WPA3-AES WPA/WPA2-PSK WPA2-PSK/WPA3-AES Management and Log NTP; Syslog Firmware Update Web/WiLynk App update OFDMA Yes MU-MIMO 2 × 2 DHCP: Yes NAT Mapping based on port QoS: Yes DDNS: Yes WARRANTY: 1YEAR
