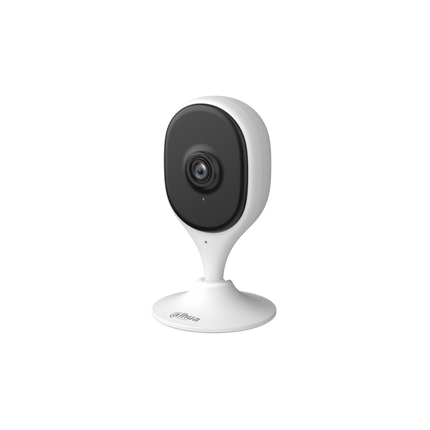

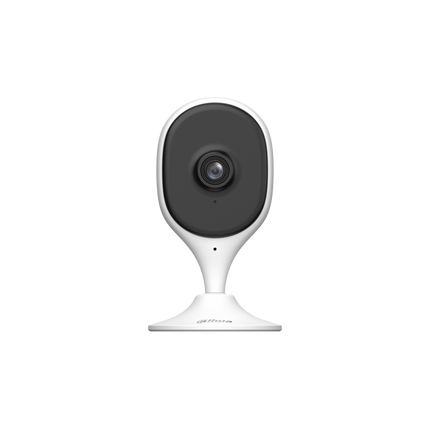

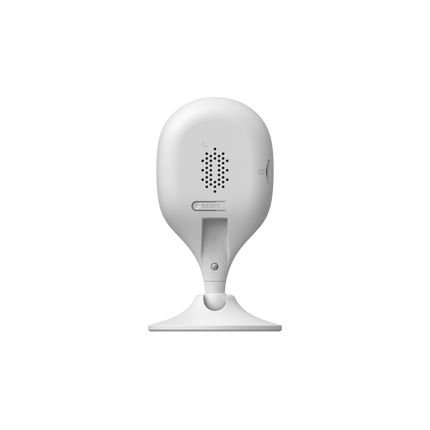

Dahua Cube A1 (DH-C3A) 3MP Indoor Fixed-focal Wi-Fi Cube Network Camera wtih FREE Adata SD Card

Description

Pre-order: will take 2-3 days for process.



Specifications:

Camera

Image Sensor

1/3.2" CMOS

Max. Resolution

2304 (H) × 1296 (V)

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Illumination Distance

Up to 10 m (32.81 ft) (IR)

Illuminator On/Off Control

Auto

Illuminator Number

1 (IR LED)

Angle Adjustment

Pan: 0° to 360°.
Tilt: -10° to 70°

Lens

Max. Aperture

F2.0

Field of View

H: 99°; V: 55°; D: 117°

Intelligence

Human Detection

Yes

Video

Video Compression

H.265

Video Frame Rate

Mainstream: 2304 × 1296@ (1-25/30 fps)
sub stream: 640 × 360@ (1-25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Resolution

3M (2304 × 1296); nHD (640 × 360)

Video Bit Rate

H.265: 80 kbps–4096 kbps

Day/Night

Auto (ICR)/Color/B/W

WDR

DWDR

Motion Detection

Yes

Image Rotation

0°/180°

Audio

Built-in MIC

Yes, built-in Mic

Built-in Speaker

Yes, built-in speaker

Audio Compression

G.711a

Network

Wi-Fi

IEEE 802.11b/g/n/ax 2.412-2.472 GHz,2.4G

Storage

Micro SD card (up to 256 GB)

Management Software

DMSS

Mobile Client

iOS; Android

Certification

Certifications

CE

Power

Power Supply

5 VDC, 1 A

Power Consumption

Basic: 1.49 W;
Max.: 2.48 W (H.265+ IR intensity)

Environment

Operating Temperature

–10 °C to +45 °C (14 °F to +113 °F)

Operating Humidity

≤95%

Structure

Casing Material

Plastic

Product Dimensions

Φ68 mm × 31.9 mm × 119.2 mm (2.68" × 1.26" × 4.69")

Net Weight

95 g (0.21 lb)

Dahua Cube A1 (DH-C3A) 3MP Indoor Fixed-focal Wi-Fi Cube Network Camera wtih FREE Adata SD Card

Product form

Pre-order: will take 2-3 days for process.    Specifications:  Camera Image Sensor 1/3.2" CMOS Max. Resolution 2304 (H) × 1296... Read more

2 in stock 2-3 days  Monday to Thursday we offer next day delivery if the product is on stock with exceptions on holidays.
Weekends No same day delivery for weekend orders

₱1,149.00

    Description

    Pre-order: will take 2-3 days for process.



    Specifications:

    Camera

    Image Sensor

    1/3.2" CMOS

    Max. Resolution

    2304 (H) × 1296 (V)

    Electronic Shutter Speed

    Auto/Manual 1/3 s–1/100,000 s

    Illumination Distance

    Up to 10 m (32.81 ft) (IR)

    Illuminator On/Off Control

    Auto

    Illuminator Number

    1 (IR LED)

    Angle Adjustment

    Pan: 0° to 360°.
    Tilt: -10° to 70°

    Lens

    Max. Aperture

    F2.0

    Field of View

    H: 99°; V: 55°; D: 117°

    Intelligence

    Human Detection

    Yes

    Video

    Video Compression

    H.265

    Video Frame Rate

    Mainstream: 2304 × 1296@ (1-25/30 fps)
    sub stream: 640 × 360@ (1-25/30 fps)
    *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

    Resolution

    3M (2304 × 1296); nHD (640 × 360)

    Video Bit Rate

    H.265: 80 kbps–4096 kbps

    Day/Night

    Auto (ICR)/Color/B/W

    WDR

    DWDR

    Motion Detection

    Yes

    Image Rotation

    0°/180°

    Audio

    Built-in MIC

    Yes, built-in Mic

    Built-in Speaker

    Yes, built-in speaker

    Audio Compression

    G.711a

    Network

    Wi-Fi

    IEEE 802.11b/g/n/ax 2.412-2.472 GHz,2.4G

    Storage

    Micro SD card (up to 256 GB)

    Management Software

    DMSS

    Mobile Client

    iOS; Android

    Certification

    Certifications

    CE

    Power

    Power Supply

    5 VDC, 1 A

    Power Consumption

    Basic: 1.49 W;
    Max.: 2.48 W (H.265+ IR intensity)

    Environment

    Operating Temperature

    –10 °C to +45 °C (14 °F to +113 °F)

    Operating Humidity

    ≤95%

    Structure

    Casing Material

    Plastic

    Product Dimensions

    Φ68 mm × 31.9 mm × 119.2 mm (2.68" × 1.26" × 4.69")

    Net Weight

    95 g (0.21 lb)
