Hardware
|
|

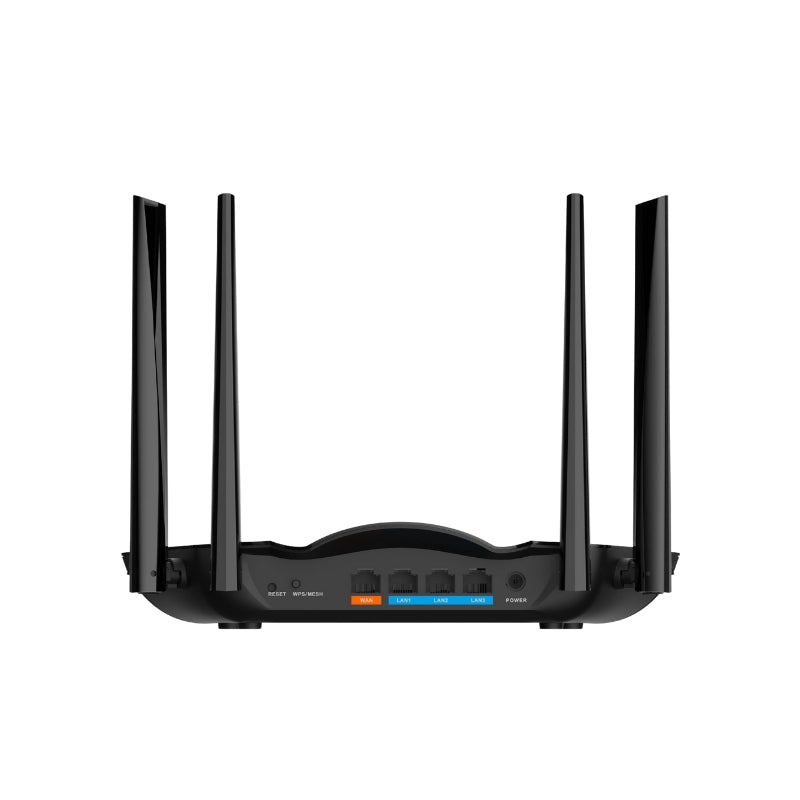

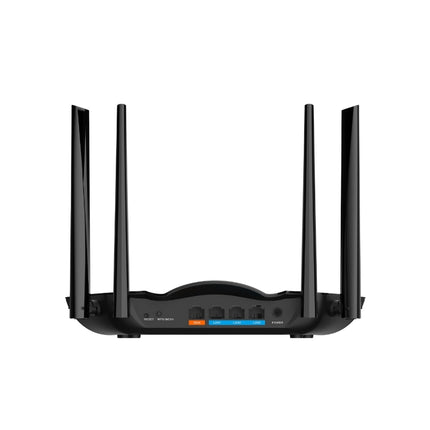

External Port
|
1×10/100/1000 Mbps (WAN)
3×10/100/1000 Mbps (LAN)
|
|
Reset Button
|
1
|
|
WPS Button
|
1
|
|
Power Consumption
|
<18W
|
|
Memory
|
256 MB
|
|
Indicator Light
|
PWR
|
|
Wireless Standard
|
2.4 GHz: 802.11 b/g/n/ax
5 GHz: 802.11 a/b/g/n/ac/ax
|
|
Performance
|
|
Operating Frequency
|
2.412GHz – 2.472 GHz
5.170GHz – 5.330 GHz
5.735GHz – 5.835 GHz
|
|
Wireless Transmission Rate
|
2.4 GHz: 574 Mbps
5 GHz: 2402 Mbps
|
|
Channel Width
|
20/40/80/160 MHz
|
|
Max. Output Power
|
CE EIRP:
≤20 dBm@2400-2483.5 MHz
≤23 dBm@5150-5250 MHz
≤23 dBm@5250-5350 MHz
≤27 dBm@5470-5725 MHz
≤14 dBm@5725-5850 MHz
FCC output power:
≤27 dBm@2400-2483.5 MHz
≤24 dBm@5150-5250 MHz
≤24 dBm@5250-5350 MHz
≤24 dBm@5470-5725 MHz
≤30 dBm@5725-5850 MHz
|
|
Antenna Gain
|
2.4 GHz: 5 dBi (±0.5)
5 GHz: 5 dBi (±0.5)
|
|
Receiver Sensitivity
|
5 GHz
11ac VHT80_MCS0: -89 dbm
11ac VHT80_MCS9: -62 dbm
11ax VHT160_MCS0: -88 dbm
11ax VHT160_MCS11: -55 dbm
11ax HE80_MCS0: -89 dbm
11ax HE80_MCS11: -59 dbm
11ax HE160_MCS0: -85 dbm
11ax HE160_MCS11: -55 dbm
2.4 GHz
11n HT20_MCS0: -95 dbm
11n HT20_MCS7: -75 dbm
11n HT40_MCS0: -92 dbm
11n HT40_MCS7: -72 dbm
11ax HE20_MCS0: -95 dbm
11ax HE20_MCS11: -65 dbm
11ax HE40_MCS0: -92 dbm
11ax HE40_MCS11: -62 dbm
|
|
Channel
|
2.4 GHz; 1-13
5 GHz: 36/40/44/48/149/151/153/157/161/165
|
|
Connected Wireless Terminals
|
Up to 128
|
Feature
|
|
Operating Mode
|
Router; repeater
|
|
Encryption Mode
|
WPA-PSK; WPA2-PSK; WPA-PSK/WPA2-PSK; WPA3-PSK; WPA2-PSK/WPA3-PSK
|
|
Firmware Update
|
Web update
WiLynk App update
|
|
OFDMA
|
Yes
|
|
MU-MIMO
|
2x2
|
|
DHCP
|
Yes
|
|
NAT
|
Mapping based on port
|
|
QoS
|
Yes
|
|
DDNS
|
Yes
|
|
Parental Controls
|
Yes
|
|
Equipment Management
|
Web/WiLynk App
|
|
Software
|
Firewall;
end device management
|
General
|
|
Power Supply
|
12 VDC,1.5 A
|
|
Operating Temperature
|
0 °C to 40 °C (32 °F to 104 °F)
|
|
Storage Temperature
|
–40 °C to +70 °C (–40 °F to 158 °F)
|
|
Operating Humidity
|
10%–95% (RH), non-condensing
|
|
Gross Weight
|
0.86 kg (1.90 lb)
|
|
Net Weight
|
0.36 kg (0.79 lb)
|
|
Packaging Dimensions
|
470 mm × 295 mm × 60 mm (18.50" × 11.61" × 2.36")(L × W × H)
|
|
Product Dimensions
|
262.2 mm × 150.1 mm × 184.5 mm (10.32" × 5.91" × 7.26")(L × W × H)
|
|
Statics Protection
|
Air discharge: 8 kV;
Contact discharge: 6 kV
|
|
Lighting Protection
|
Common mode: 2 kV;
Differential mode: 0.5 kV
|
|
Installation
|
Desktop mount;
wall mount
|
