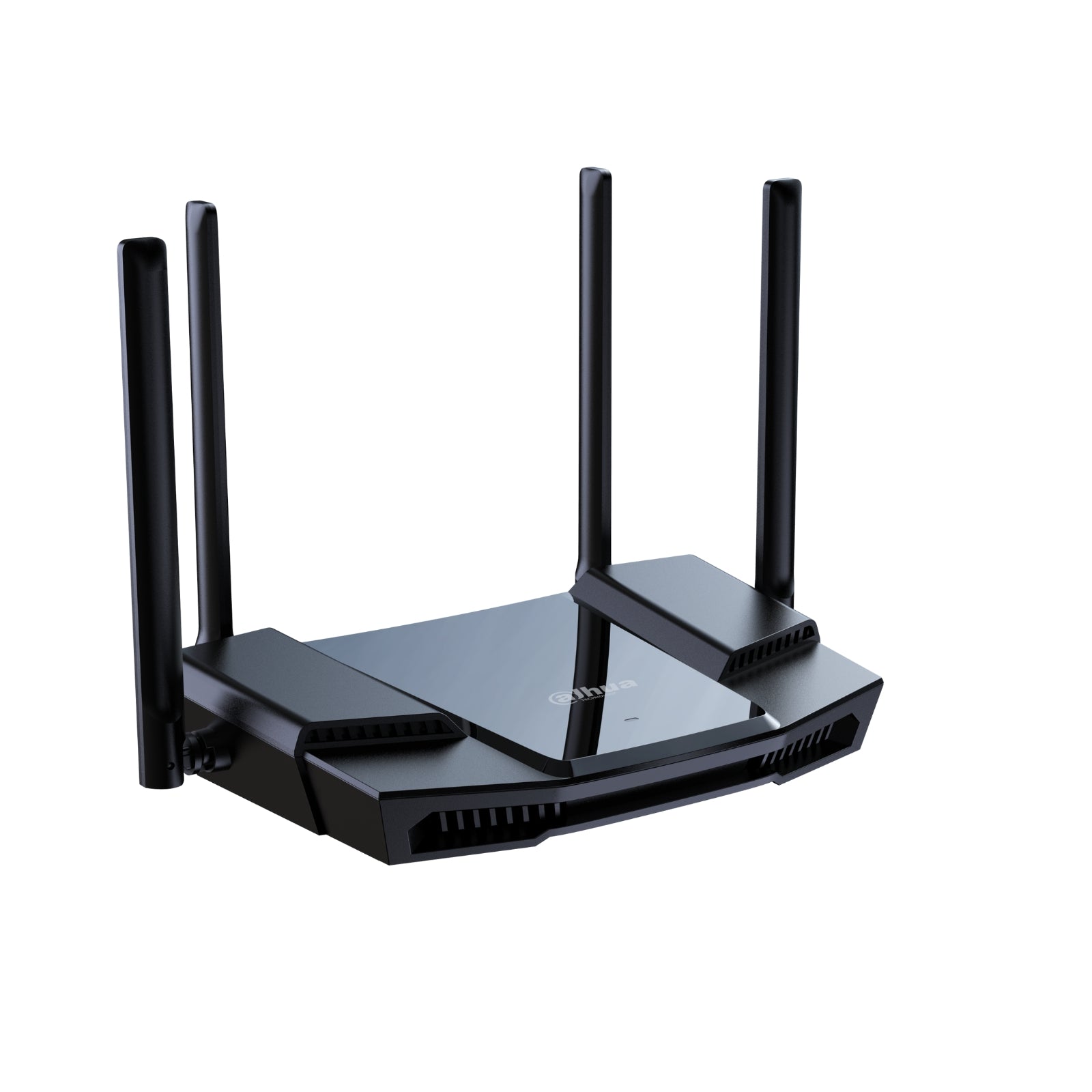

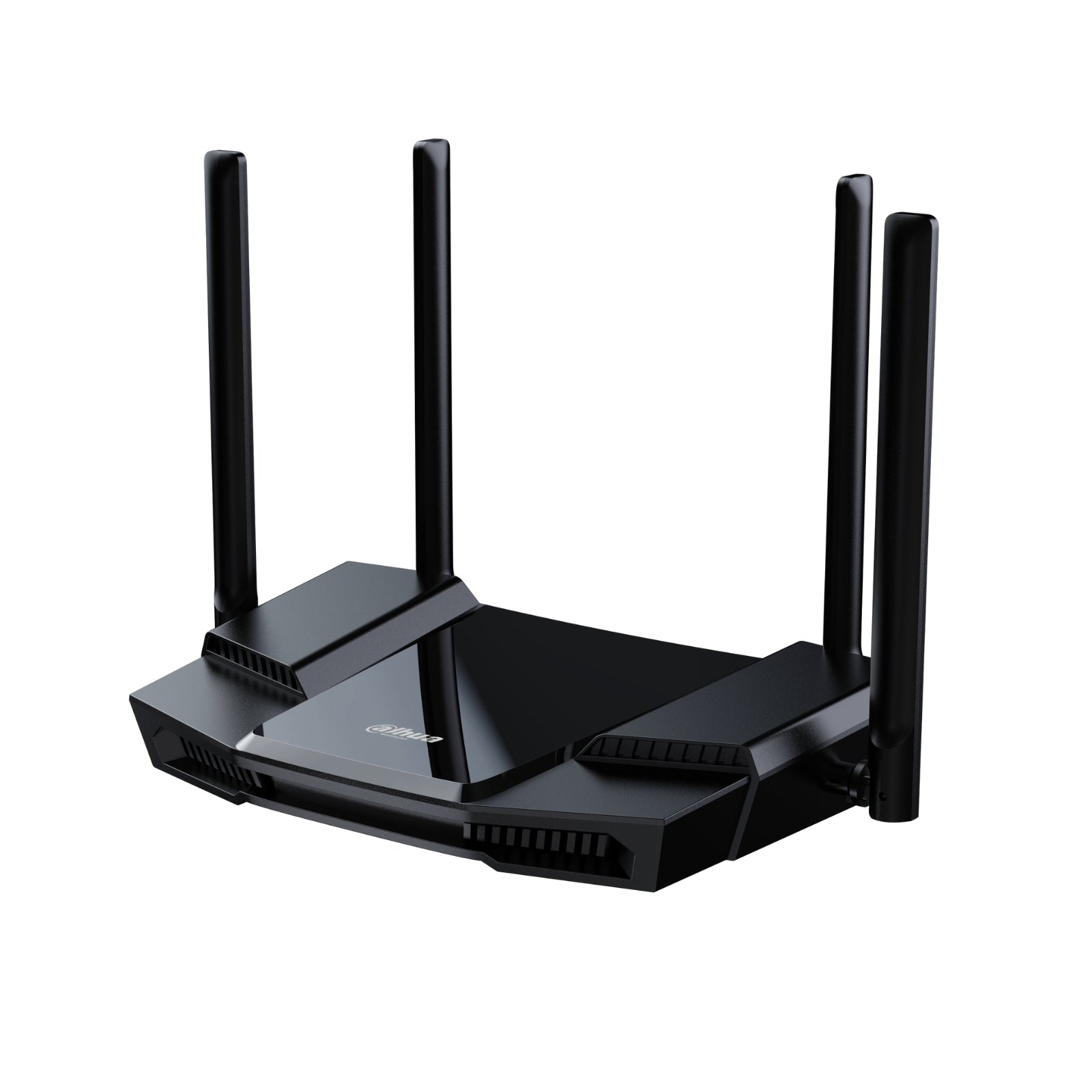

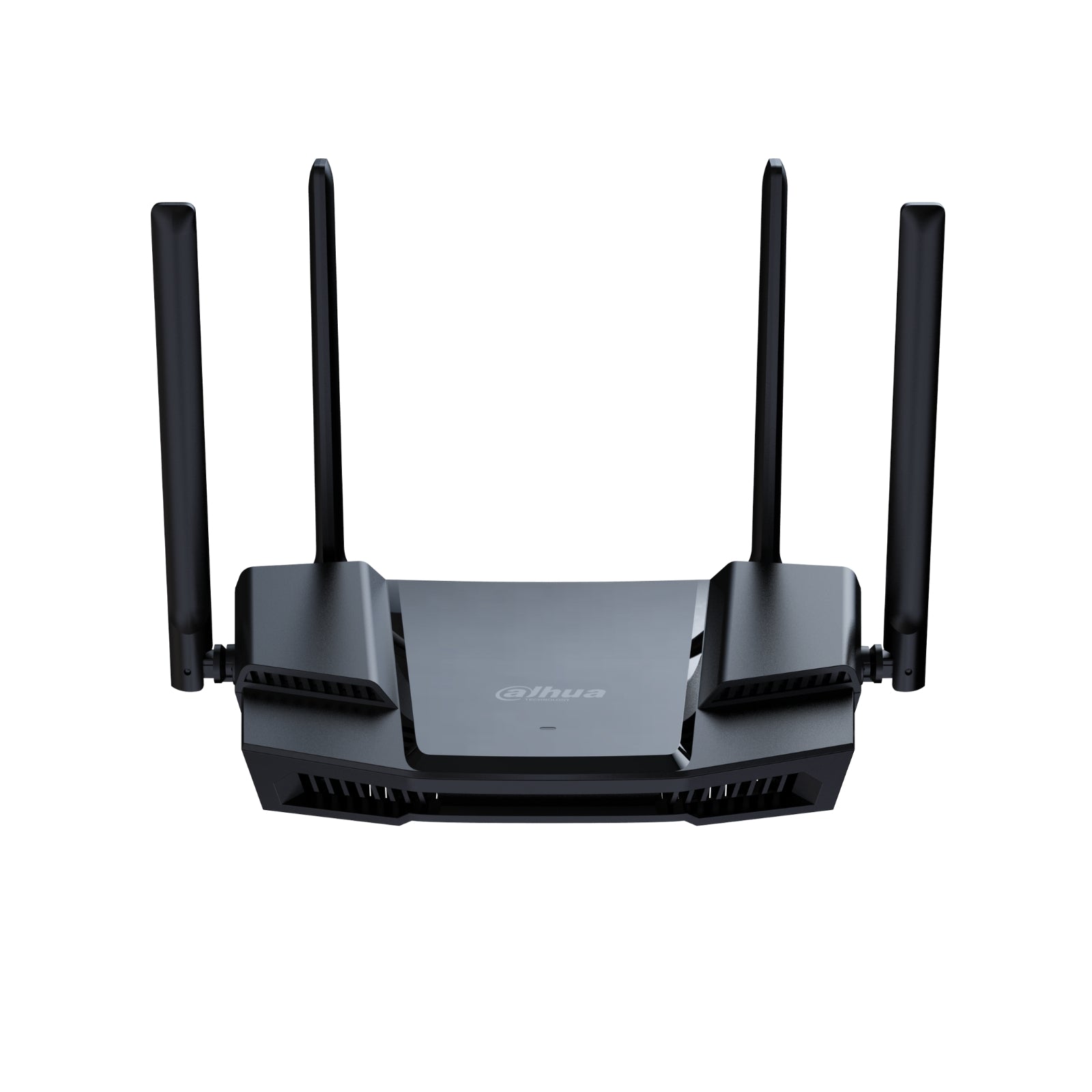

Dahua AX1800 (DH-AX18) Wireless Router

  • ₱2,590.00
    Unit price per
Shipping calculated at checkout.


Pre-order: will take 2-3 days for process.


Specification

Hardware
WAN Port 1×10/100/1000 Mbps
LAN Port 3×10/100/1000 Mbps
Reset Button 1
WPS Button 1
Power Consumption <12 W
Memory 128 MB Flash and 256 MB RAM
Indicator Light PWR
Wireless Standard 2.4 GHz: 802.11 b/g/n/ax
5 GHz: 802.11 a/n/a/ac/ax

Performance
Operating Frequency 2.412 GHz–2.484 GHz
5.150 GHz–5.850 GHz

Wireless Transmission
Rate

2.4 GHz: 574 Mbps
5 GHz: 1201 Mbps
Channel Width 20/40/80 MHz
Max. Output Power 20 dBm ± 2 dBm
Antenna Gain 2.4 GHz: 5dBi (±0.5)
5 GHz: 5dBi (±0.5)

Receiver Sensitivity

2.4 GHz
11n HT20_MCS0: -95 dbm
11n HT20_MCS7: -75 dbm
11n HT40_MCS0: -92 dbm
11n HT40_MCS7: -72 dbm
11ax HE20_MCS0: -95 dbm
11ax HE20_MCS11: -65 dbm
11ax HE40_MCS0: -92 dbm
11ax HE40_MCS11: -62 dbm
5 GHz
11ac VHT80_MCS0: -89 dbm
11ac VHT80_MCS9:-62 dbm
11ax HE80_MCS0: -89 dbm
11ax HE80_MCS11:-59 dbm

Optimal Transmission
Distance 63 m (206.69 ft)
Channel

2.4 GHz: 1-13
5 GHz: 36/40/44/48,52/56/60/64,149/151/153/157/1
61/165
Connected Wireless
Terminals

2.4 GHz: 32
5 GHz: 32

Function
Encryption Mode

WPA-PSK
WPA-PSK/WPA2-PSKWPA2-PSKWPA2-PSK/WPA3-
SAEWPA3-SAE
Management and Log NTP; Syslog
Firmware Update Web/WiLynk App update
OFDMA Yes
MU-MIMO 2x2
DHCP Yes
NAT Mapping based on port
VPN L2TP
PPTP
QoS Yes
DDNS Yes
Parental Controls Yes
Equipment Management Yes
General
Power Supply 12 VDC,1 A
Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature –20 °C to +70 °C (–4 °F to 158 °F)
Operating Humidity 10%–90% (RH), non-condensing
Gross Weight 0.73 kg (1.61 lb)
Net Weight 0.43 kg (0.95 lb)
Packaging Dimensions 309 mm × 298 mm × 61 mm (12.17" × 11.73" × 2.40")
(L × W × H)
Product Dimensions 252 mm × 155mm × 178 mm (9.92" × 6.10" × 7.01")
(L× W × H)
Statics Protection Air discharge: 8 kV
Contact discharge: 6 kV
Lighting Protection Common mode: 2 kV
Differential mode: 0.5 kV
Installation Desktop mount

Packing List

1 × Device
1 × Power adapter
1 × Ethernet cable
1 × Quick Start Guide
1 × Legal and Regulatory Information

WARRANTY: 1YEAR
