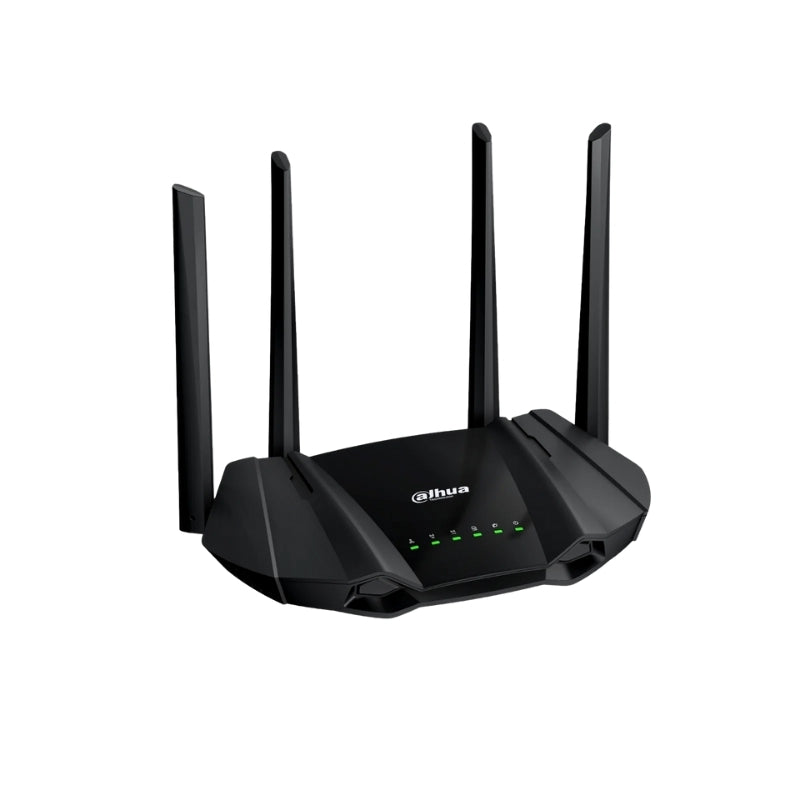

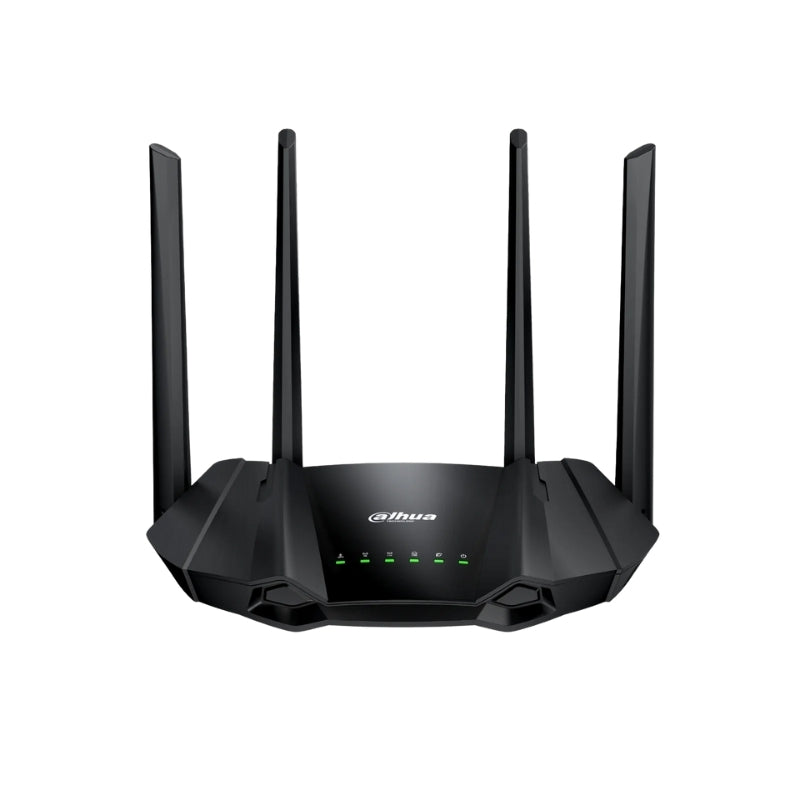

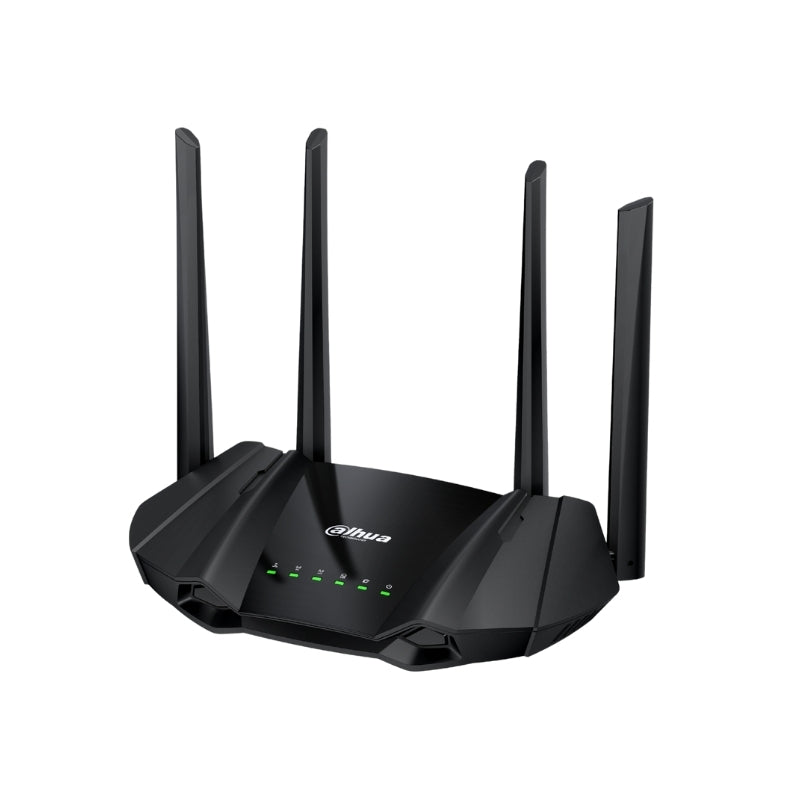

Dahua AX1500 (DH-AX15M) Wireless Router
Pre-order: will take 2-3 days for process.
Technical Specification
Hardware

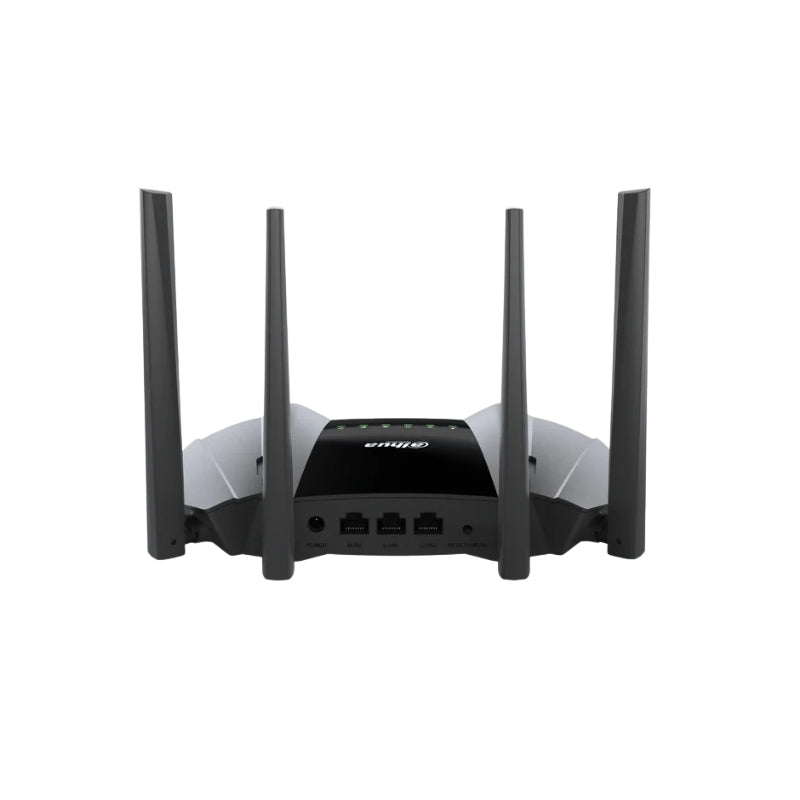

Physical Port 1 × 10/100/1000Mbps WAN
2 × 10/100/1000Mbps LAN
Power Consumption: <10 W
Memory: 128 MB Flash and 128 MB RAM
Indicator Light
1 × WPS
1 × 5GHz, 1 x 2.4GHz
1 × LAN
1 × Internet
1 × PWR
Button 1 × Reset/WPS button
Wireless Standard 2.4 GHz: 802.11 b/g/n
5 GHz: 802.11 a/n/a/ac/ax
Performance
Operating Frequency 2.412 GHz–2.484 GHz
5.150 GHz–5.850 GHz
Wireless Transmission Rate 2.4 GHz: 300 Mbps
5 GHz: 1201 Mbps
Channel Width 20/40/80 MHz
Max. Output Power 20 dBm ± 2 dBm
Antenna Gain 2.4 GHz: 5dBi (±0.5)
5 GHz: 5dBi (±0.5)
Receiver Sensitivity
2.4 GHz
11n HT20_MCS0: -95 dbm
11n HT20_MCS7: -75 dbm
11n HT40_MCS0: -92 dbm
11n HT40_MCS7: -72 dbm
5 GHz
11ac VHT80_MCS0: -89 dbm
11ac VHT80_MCS9: -62 dbm
11ax HE80_MCS0: -89 dbm
11ax HE80_MCS11: -59 dbm
Channel
2.4 GHz: 1-13
5 GHz: 36/40/44/48,52/56/60/64,149/151/153/157
/161/165
Connected Wireless Terminals 2.4 GHz: 16
5 GHz: 32
Function
Encryption Mode
WPA-PSK
WPA2-PSK
WPA3-AES
WPA/WPA2-PSK
WPA2-PSK/WPA3-AES
Management and Log NTP; Syslog
Firmware Update Web/WiLynk App update
OFDMA Yes
MU-MIMO 2 × 2
DHCP: Yes
NAT Mapping based on port
QoS: Yes
DDNS: Yes
WARRANTY: 1YEAR
